Aico (EI3000MRF) Smart Link Module

The Ei3000MRF Module allows for wireless interconnection and data extraction. Simply plug in to any 3000 Series alarm.

Product Description

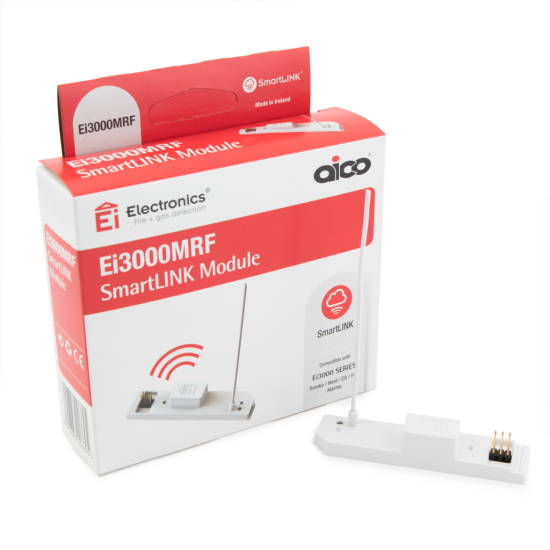

SmartLINK Module Ei3000MRF

With the introduction of the 3000 Series we have also advanced our award-winning Radio Frequency (RF) Wireless Interconnection and Data Monitoring technology. We’ve made it smarter, easier and future-proof. We’ve taken our renowned RadioLINK+ technology and added a new range of functions and features.

Wireless Interconnection

The new SmartLINK technology still provides the same proven wireless interconnection technology as RadioLINK and RadioLINK+, using Radio Frequency signals and is completely compatible with both existing systems.

• No need for tricky cable runs, alarms interconnect using Radio Frequency signals
• When one alarm is triggered, all others sound for audibility throughout the property
• Expand existing systems easily by adding in SmartLINK technology
• Achieve remote whole-system data monitoring and extraction when access is not possible
• To add SmartLINK technology to your system, simply plug SmartLINK modules into any 3000 Series alarm head.

Technical Specification

• Supply Voltage: Powered from Alarm
• RF Frequency: 868MHz band (1% duty cycle)
• RF Power: +10dBm
• RF Protocol: Proprietary RF Protocol using multi-path, multi-repeater mesh architecture
• RF Range: >100 metres in free air, 30 metres in standard property
• System Size: Up to 12 RF devices
• Indicator LED’s: 3 colour LED: Blue, Green and Re
• Data Monitoring: Via Ei1000G Gateway
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant
• Dimensions – Product: 80mm x 18mm x 16mm
• Dimensions – Boxed: 120mm x 110mm x 35mm
• Weight: 10g (product only), 62g (boxed)
• Guarantee: 5 years
